Dash Installation
READ ALL INSTRUCTIONS FULLY BEFORE STARTING ASSEMBLY
Scroll all the way to the bottom of this page.
Follow these guidelines to safely install Dash
Failure to install Dash to a structurally sound, load-bearing wall can result in severe injury or death.
DO NOT INSTALL DASH TO SHEETROCK ALONE.
Dash must be installed to a load-bearing structure and/or wall studs.
NEVER LEAN DASH AGAINST THE WALL WITHOUT HOLDING IT SECURELY. It can tip over and cause severe injury or death.
Install the Pullup bar only after all 12 fasteners have been used to secure the assembled Dash ladder to the wall.
DASH MUST BE ATTACHED TO A LOAD-BEARING WALL OR STRUCTURE USING ALL 12 FASTENERS
***Dash is designed to be installed onto 16-inch stud widths***
Consult a licensed, professional home contractor and/or engineer for installation advice and to confirm your point of installation is structurally sound.
Follow these Steps to Assemble and Install Dash

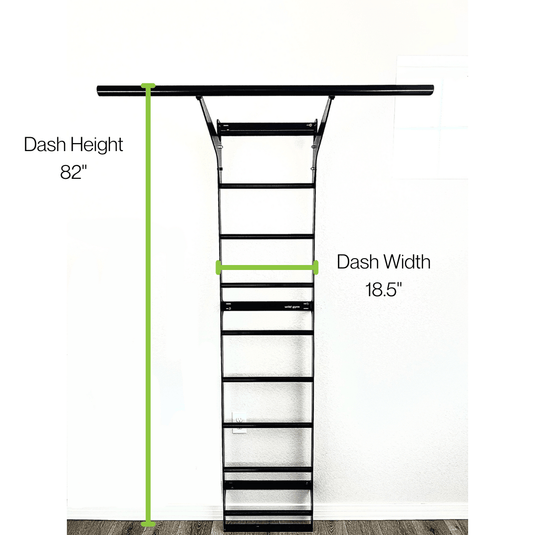

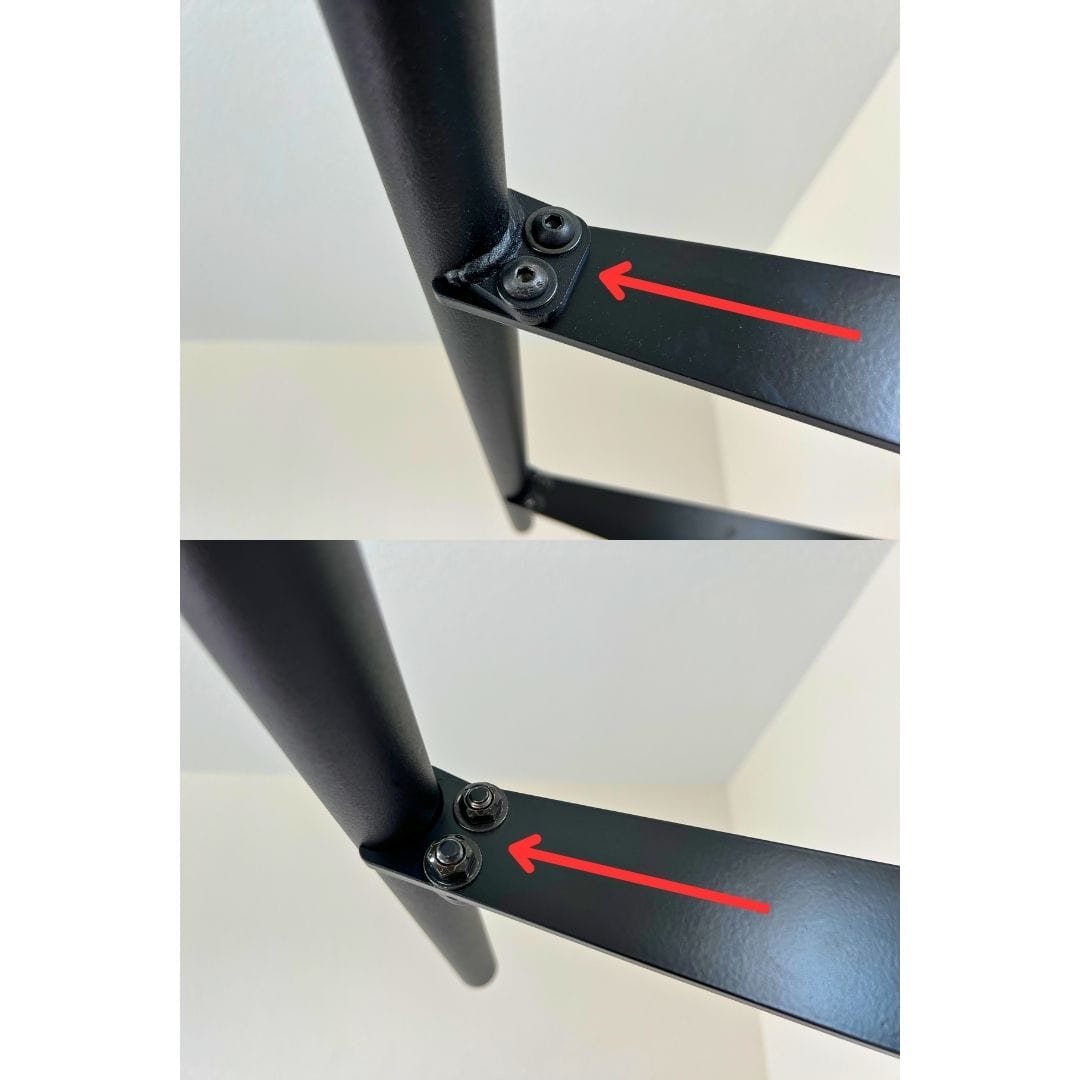

1. Assemble the two halves of the Dash ladder on the ground. Use all 8 sets of nuts, bolts, and washers to assemble the two halves of the ladder together.
2. The bottom of the assembled Dash ladder should be resting on the floor.

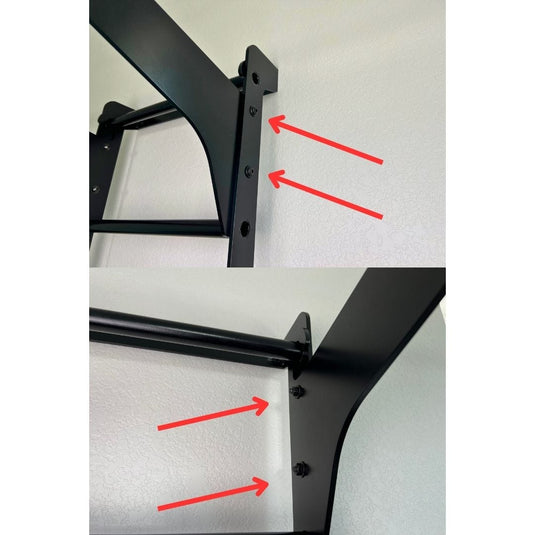

3. Assemble the Pullup bar and supporting arms using all 4 sets of nuts, bolts, and washers.
4. DO NOT ATTACH the Pullup bar to the ladder until the assembled Dash ladder has been securely attached to the wall using all 12 fasteners.
5. Once the Dash ladder has been assembled and securely mounted to the wall - attach the assembled Pullup bar to the Dash ladder.
6. Secure the assembled Pullup bar to the Dash ladder via the 4 sets of nuts, bolts, and washers.
STEP 1

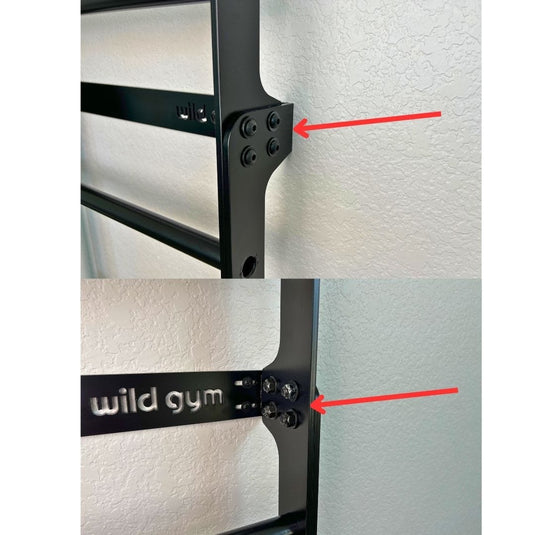

Assemble the two halves of the Dash ladder on the ground. Use all 8 sets of nuts, bolts, and washers to assemble the two halves of the ladder together.
STEP 2
2. The bottom of the assembled Dash ladder should be resting on the floor.
STEP 3
Assemble the Pullup bar and supporting arms using all 4 sets of nuts, bolts, and washers.
Assemble the Pullup bar and arms SEPARATELY from the Dash ladder.
STEP 4

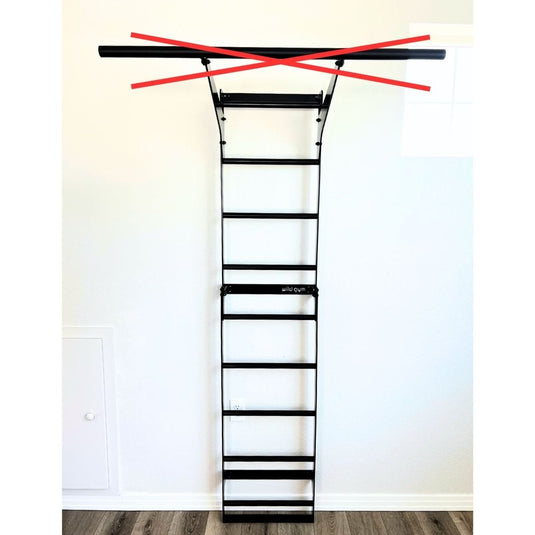

DO NOT ATTACH the Pullup bar to the ladder until the assembled Dash ladder has been securely attached to the wall using all 12 fasteners.
STEP 5

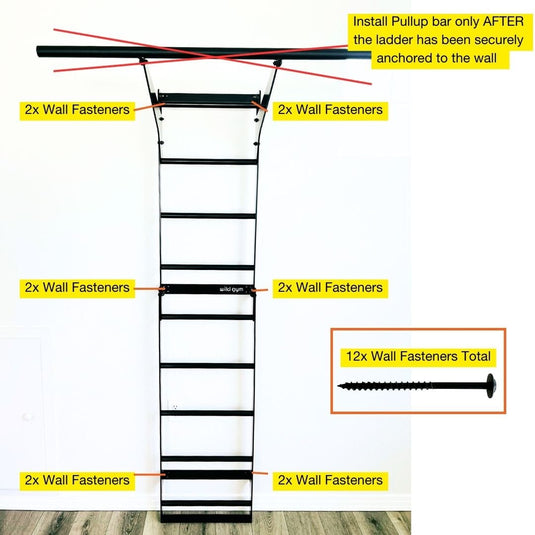

Before attaching the Pullup bar - anchor the assembled ladder to the wall using all 12 Fasteners.
STEP 6

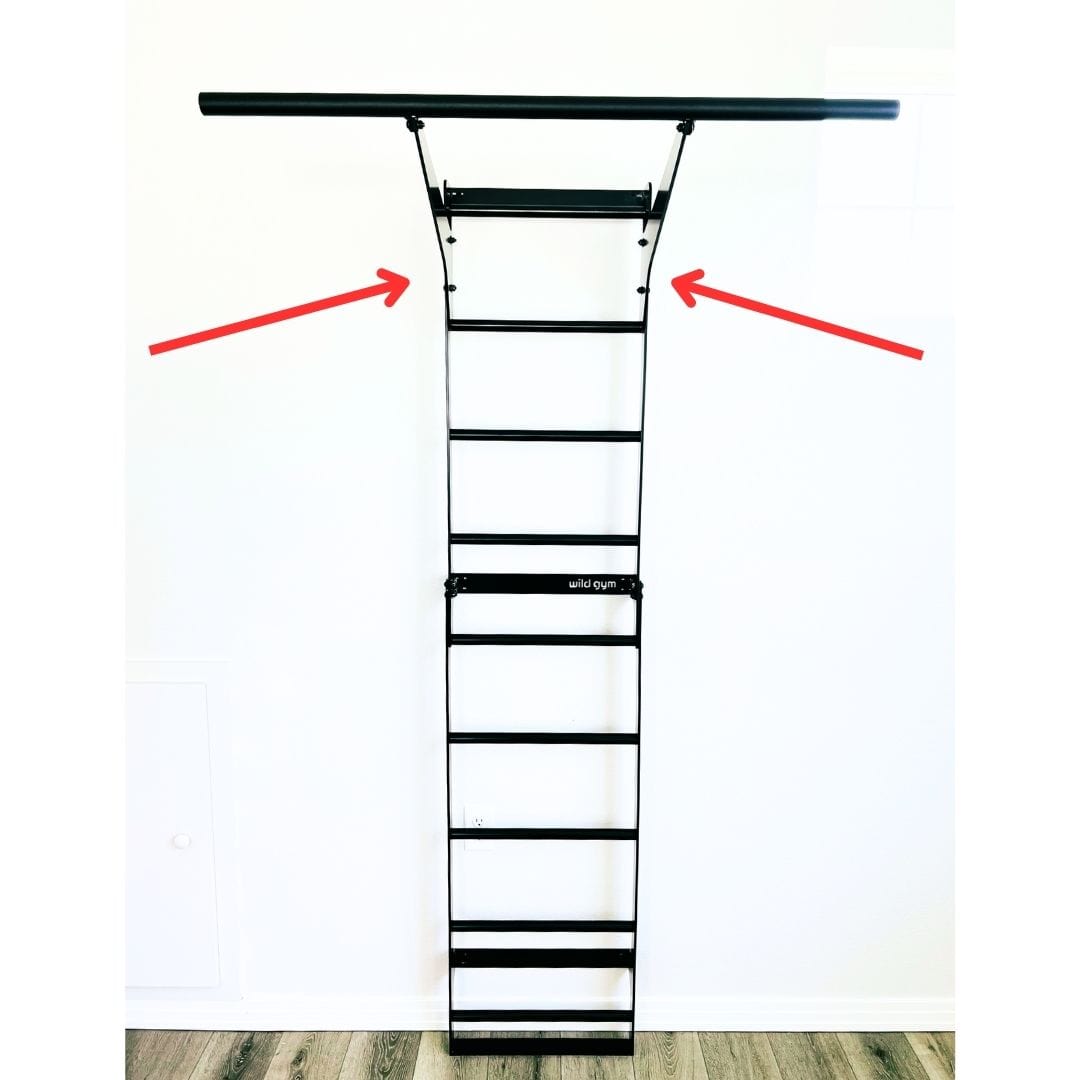

Once the Dash ladder has been assembled and securely mounted to the wall - attach the assembled Pullup bar to the Dash ladder.
STEP 7
Secure the assembled Pullup bar to the Dash ladder via the 4 sets of nuts, bolts, and washers.
